Stuart BottoneElectricity from steam

Type: 2 pole shunt wound dynamo.
Windings :25 Watts or 40 Watts
Availability 1933

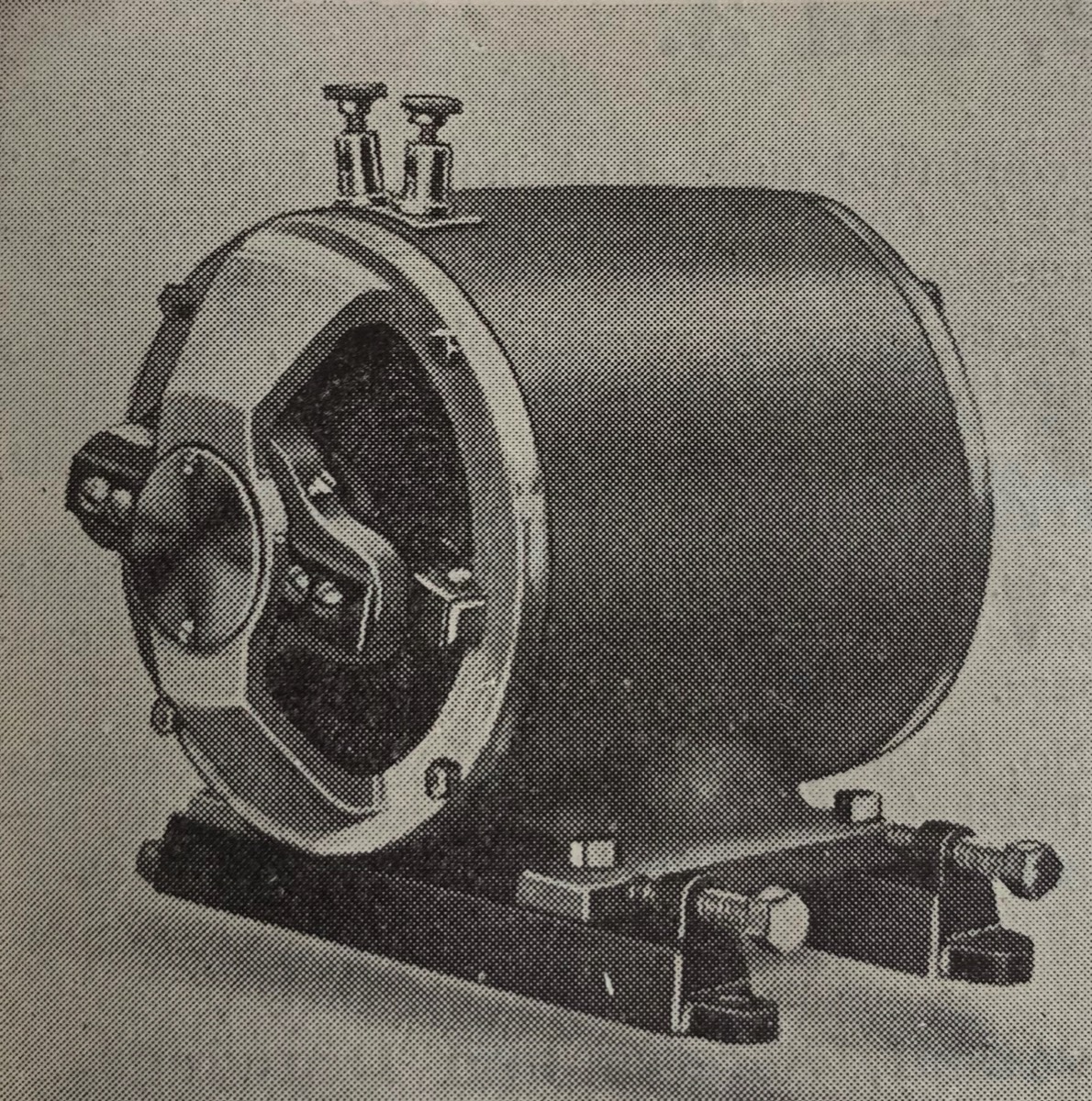

THE BOTTONE "O" DYNAMO.

Stacks Image 134
This is the only small D.C. dynamo of thoroughly sound design, both mechanically and electrically, on the market.

The complete set of accurately machined parts is provided with such clear instructions that the beginner who has never tackled electrical work before may build this machine with confidence.

It is an open protected two-pole shunt-wound dynamo, with 10 section armature, ball bearings, self lubricating brushes in radial adjustable holders, and former wound field coils.
Two sets of windings are provided. No.1 is for use with Not. 7a, 8 and Sun engines, and No.2 for use with Stuart Nos. 4 and 9 engines. the Petrol lightweight, and No. 800 Gas Engines.
Max output with No.1 winding at 2,000 r.p.m., 25 Watts, 12Volts.
Max output with No.2 winding at 3,000 r.p.m., 40 Watts, 12 Volts.

Price of Dynamo, finished and tested (9-lbs. packed) … £3 5s Post free.

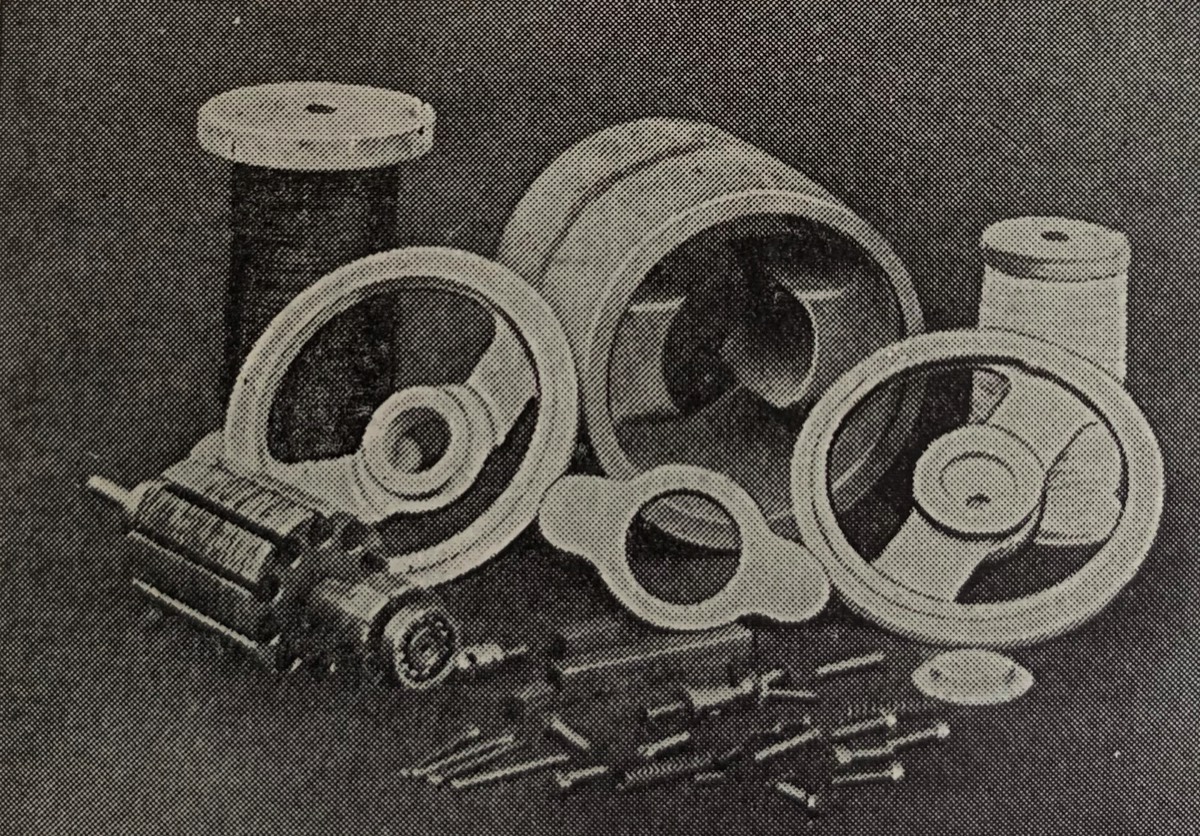

Fully machined castings, armature assembled, commutator finished and bearings fitted, bolts, terminals, wire and all material for building (9-lbs. packed) … £1 3s Post free.
The dynamo may be direct coupled to the Sun engine or driven by belt from the flywheel of lower speed engines, such as Stuart Not. 4, 7a, 8 and 9. Slide rails which enable the dynamo to be moved to adjust the belt can be supplied.
Stacks Image 143

EXTRAS.

Winding armature and finishing 9/-
Field coils wound and taped
6/-
All holes drilled and taped
7/6
Pulley 1/6
Slide rails and bolts 3/1
Rubber driving belt
1/-







Design

The design of this dynamo is well suited to powering by small steam or IC engines. Providing enough power for small lightbubls or charging 12 V batteries. It must be remembered that at this time many rural houses were not connected to mains electricity. My grandfather had apetrol powered generator and charged 12 V batteries for families in the village. The combination in the image below shows the standard cast base for mounting this combination. Different bases were available for different combinations of engines and dynamos or water pumps.







Stacks Image 117

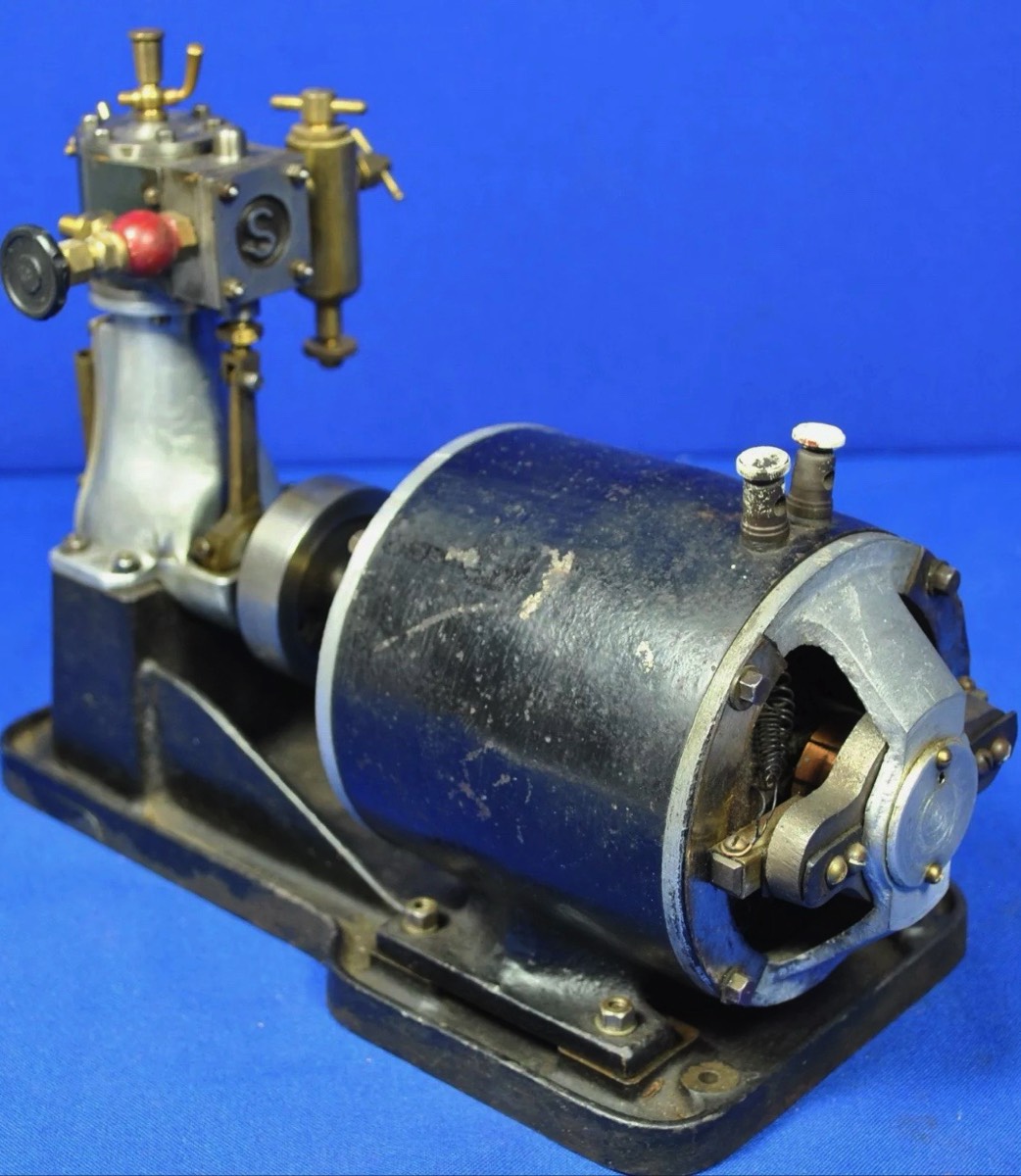

Stuart Bottone powered by a BB engine, both mounted on a cast baseplate.






Customer Feedback.
F. J. T. writes :-
"I would like to say, however, that I am entirely satisfied with the Bottone Dynamo, in fact the voltage is so steady thst I run the light - a 12watt lamp direct off thev dynsmo for some 5 or 6 hours a night and a contiuous output of 20 watts fails to show any appreciable rise of temperature."

F. L. C. W. writes :-
" I bought a No.1 Bottone Dynamo from you last June, and am very pleased with it. Its efficiency is about 70% for the optimum load (about 50 Watts input, as a motor) which I think is excellent for so small a machine."

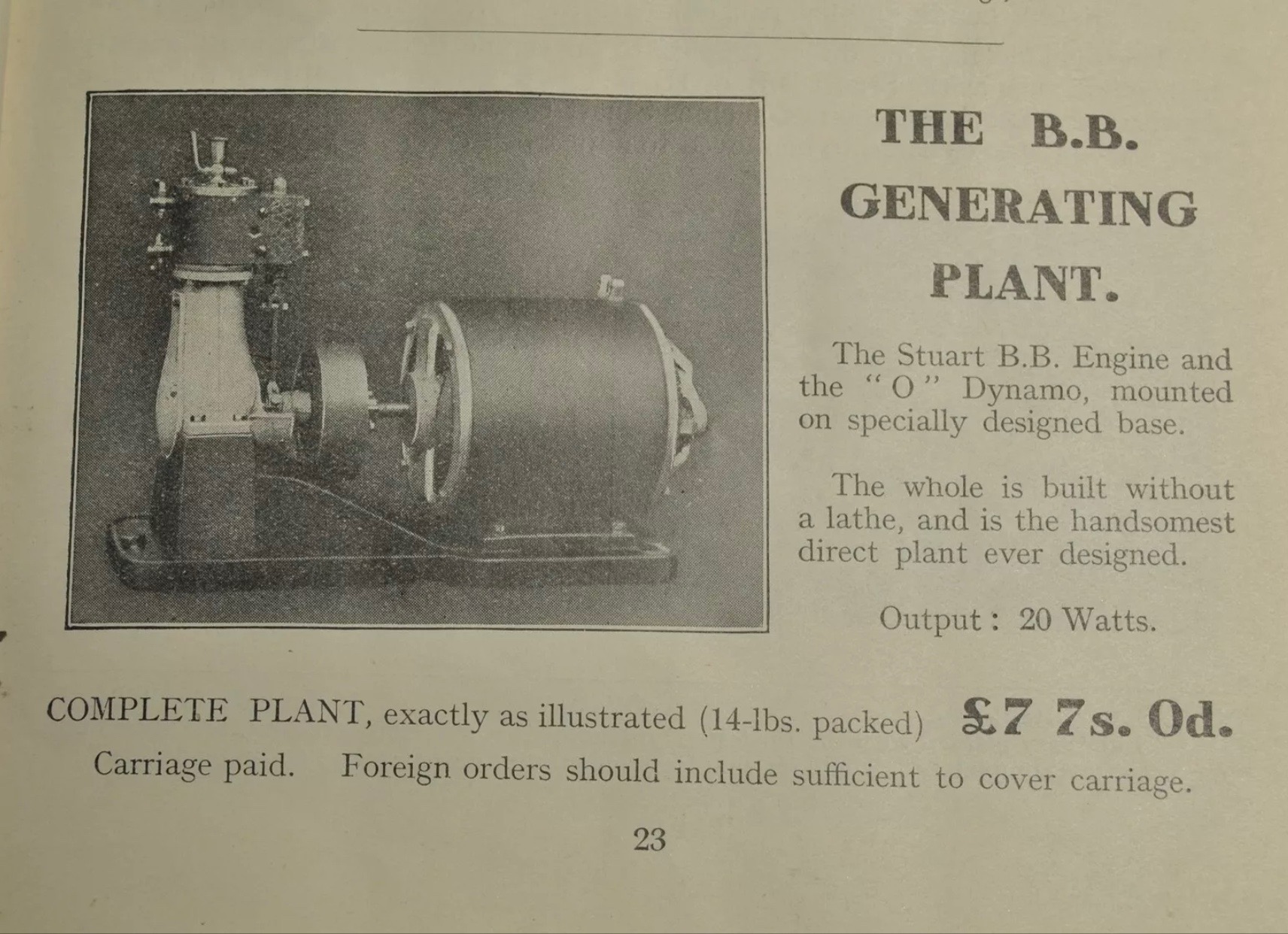

Stuart BB Generating Plant

bottonecombo

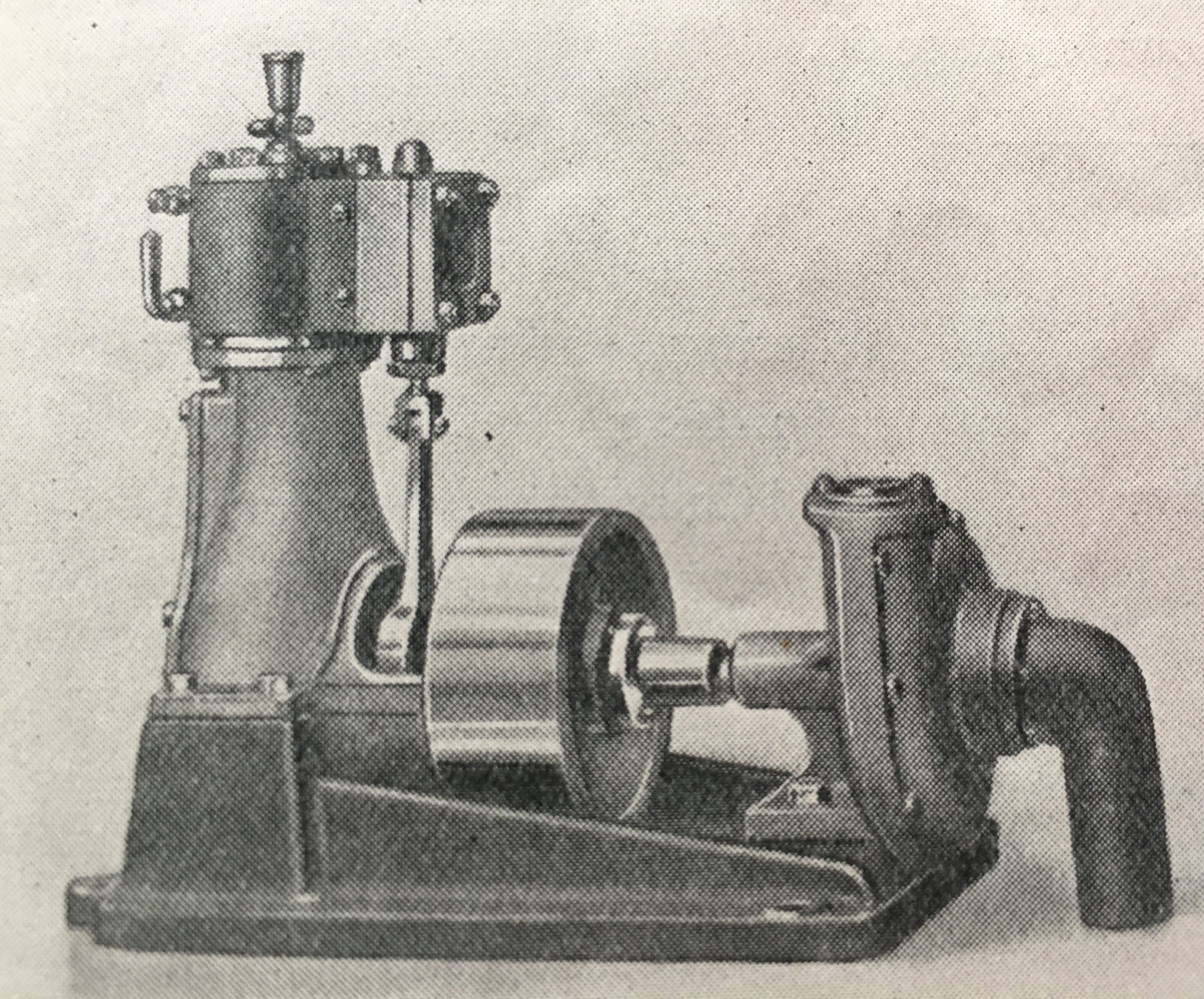

Stuart BB Water Pumping Plant

bbandwater

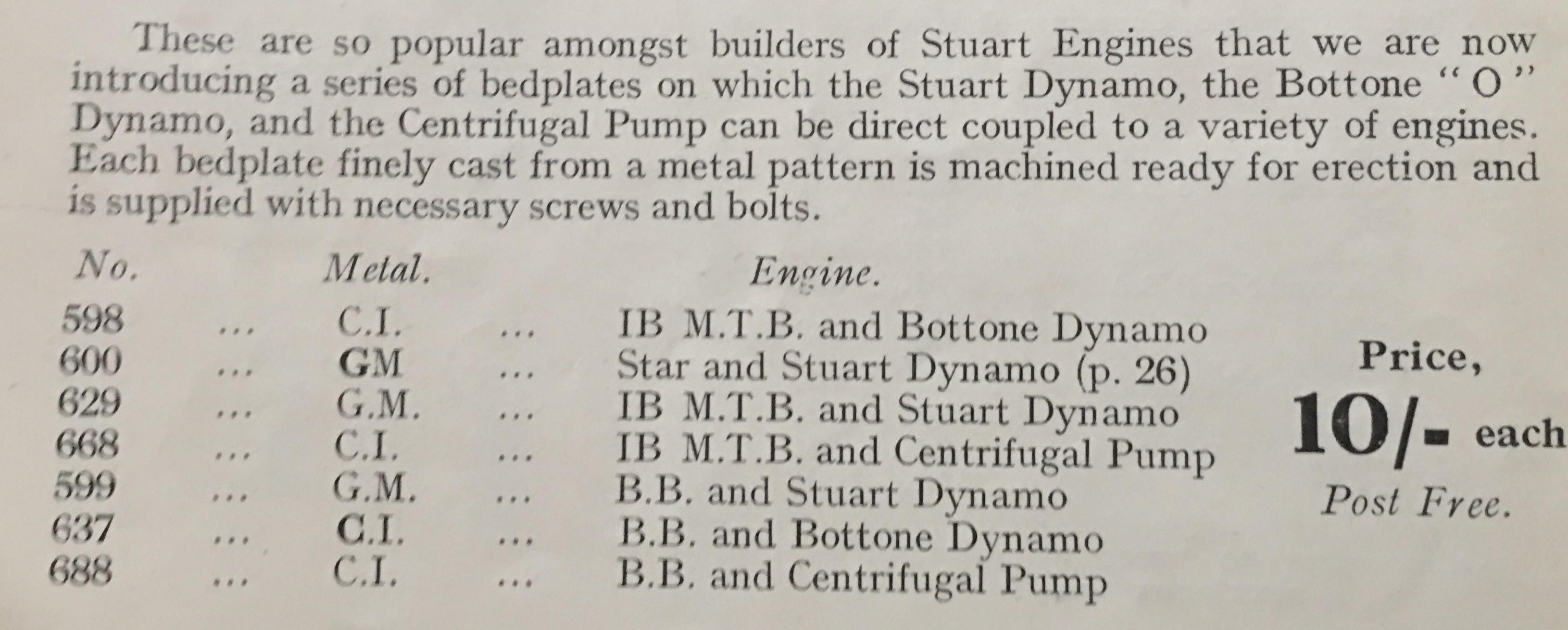

Stuart Base Plates

basepltes
