KitsThree types


Stuart sell their glorious engines in three different formats to cover all possible buyers.

For engineers the Casting Kits come as raw castings, raw material for machining parts, all nuts & bolts and excellent drawings. Unlike Stuart's early drawings that consisted only of technical plans, these new designs, contain a list of parts, an exploded view (see the parts page. Link) and a set of detailed assembly instructions.

Ideal for the enthusiast who feels that the machining is beyond his experience but wishes the pleasure of assembling these works of art Machined kits come as a complete set of beautifully machined parts neatly vacuum packed with bagged nuts & Bolts and the great plans.

Assembled engines come preassembled and ready to steam, just add oil

Accessories are also available separately including things such as O rings, oil cups, wooden plinths, paint kit, etc…

Casting Kit

Stacks Image 147

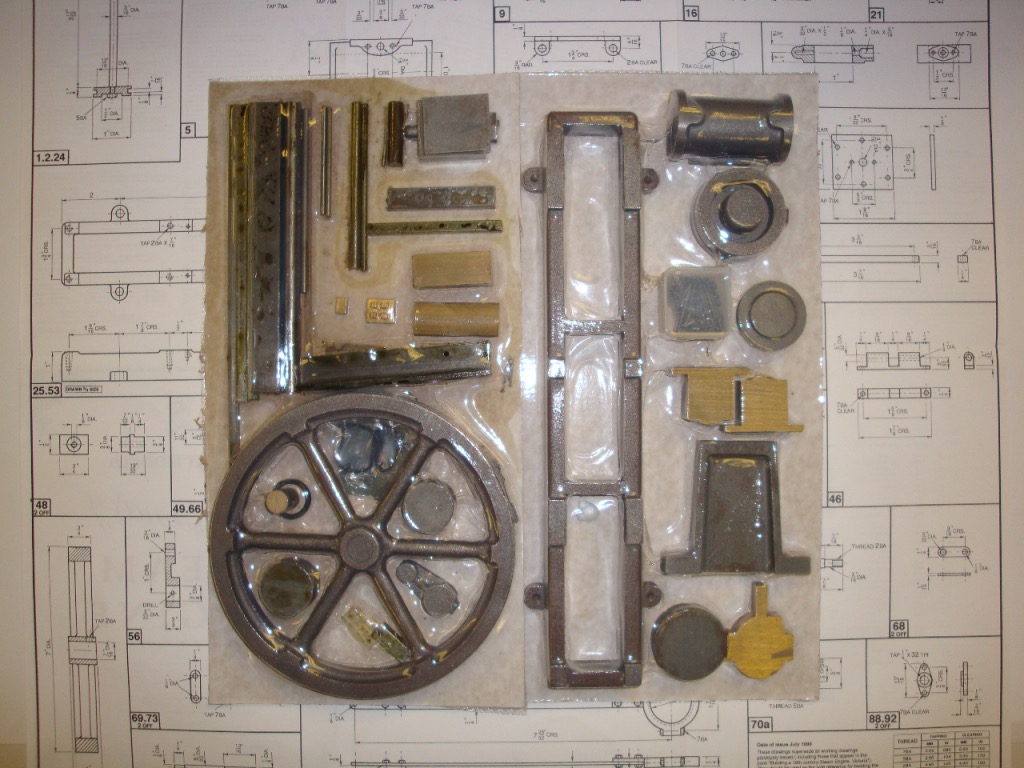

Stuart Victoria Casting kit.

Machined Kit

Stacks Image 154
Stuart Twin Victoria Machined Kit.

Assembled Model

Stacks Image 161

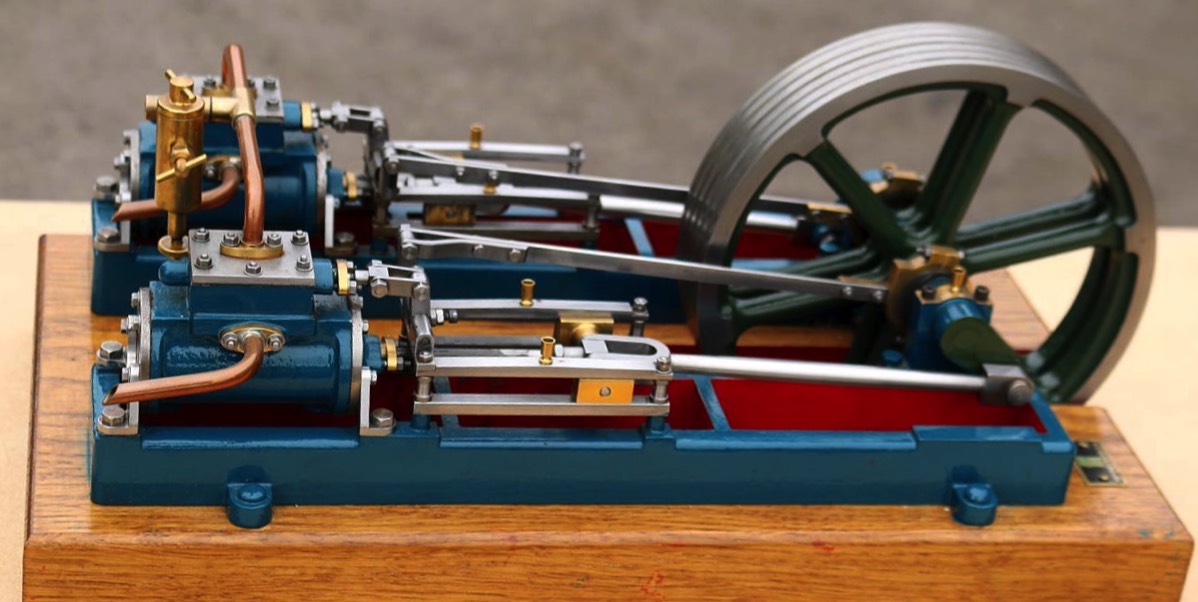

Stuart Twin Victoria Built engine. Wooden plinth available as an extra. Note the Stuart plaque on the right. (This engine was sold as a Stuart assembled model, however the colours are not Stuart standard and the eccentric rod is not assembled correctly. The machining is certainly a high standard.)
