Type: Model steam launch.
Length: 24-ins.
Beam: 4 1/4-ins.
Displacement: 2 1/2-lbs.
Weight ready for running: 3-lbs.
Boiler:

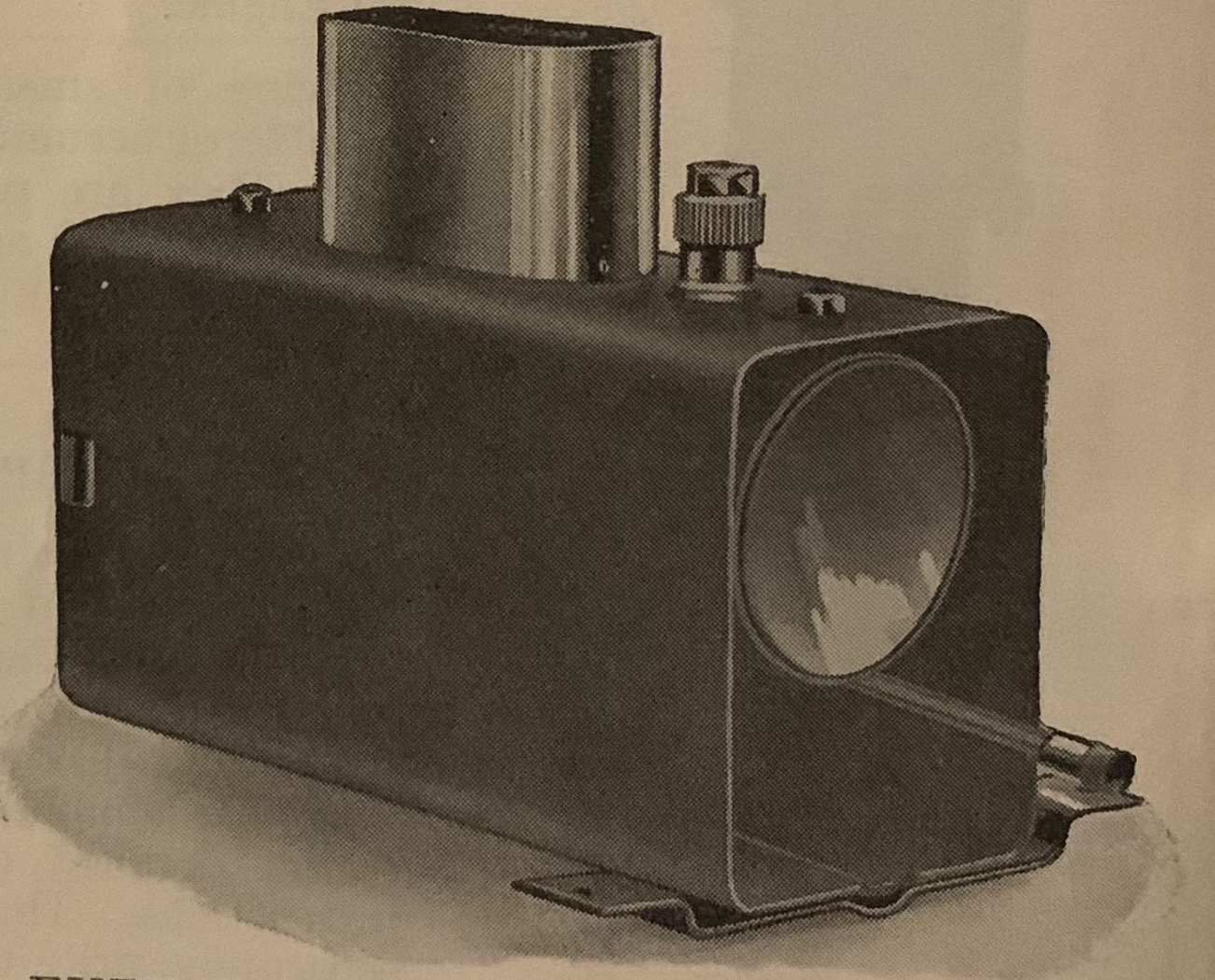

S.T. Boiler
Engine: S.T.



The Steam Launch “ HENLEY ”


THE SMARTEST MODEL BOAT EVER PRODUCED.

Stacks Image 172



Length, 24-ins. Beam, 41-ins. Displacement, 24-lbs.
Weight ready for running, 3-Ibs.


A splendid sea boat—practically unsinkable—she is very fast.
The steering is particularly good.

The mahogany hull is not dug out of the solid, but built up by a special method, making an extremely light and strong boat.

The machinery is the S.T. Steam Plant with the new Stuart Marine Boiler and spirit lamp which won’t blow out, even in a gale of wind. Over 1,000 of the S.T. Engines have already been sold as sets of machined parts at 5/- each. Though we guarantee every engine to work perfectly, not half a dozen times has there been any difficulty.

The boat is superbly finished throughout and will be a delight to every owner.

£2 2s. (Post Free}.

__________________________

SPECIFICATION.

HULL.—Length 24 ins., Beam 4 1/2 ins., Depth 3 ins., Weight 1 Ib. Finest Honduras mahogany enamelled white and sea green. Stern deck and inside varnished. Name in gold on bow and stern.

ENGINE.—Weight, 44 ozs., S.T. Vertical Oscillating double-acting, bore and stroke 7/16-in., cast gunmetal cylinder, shaft, crank disc, and crankpin machined in one Piece from solid steel. Mounted on aluminium stretcher. Fitted with steam and exhaust pipes.

BOILER.—Length 51-ins., Width 2t-ins., Height 34-ins, Weight in working order 15 ozs., “‘S.T.”’ Marine type, solid drawn drum 1-in. dia. with brazed copper ends. Sheet steel casing. ‘Fitted on safety valve and polished copper funnel. ‘Complete with spirit lamp.

Stacks Image 185

PROPELLOR.—Cast gunmetal two-bladed 1?-in. diameter, 2-ins. pitch.

SHAFT.—Hard brass running in White metal bearings in brass stern tube flexible coupling to engine. | ,

RUDDER.—Polished brass compensated type. Rudder post has adjustable friction control.

SPRAY HOOD.—Polished aluminium.







The Steam Launch "HENLEY" — Continued.

Stacks Image 195


For those who prefer to build their own boats we can supply :—

COMPLETE SETS OF PARTS.

Hull with hole bored for stern tube, machined set of engine parts, finished boiler and lamp, spray hood, propeller, shaft, coupling, stern tube, rudder, asbestos, | screws, working diagram and instructions for running.

30/- (Post Free)


EXTRA


For painting hull and fitting stern tube and rudder … … … … … extra
7/6
For finished engine fitted steam and exhaust pipes … … … … extra
2/6

____________________________

Parts can be supplied separately as follows, all post free :-

Hull finished with one coat of undercoat paint … 15/-

Set of engine parts machined … … … 5/-

Boilers with safety valve, funnel, spirit lamp, steam and exhaust pipes … … 8/-

Spirit lamp, 1/- ; Safety valve, 2/- ; Funnel, 1/- ; Propellor, 2/- ; Stern tube and shaft, 2/- ; Coupling, 6d. ; Rudder, 2/- ; Engine stretcher 1/- ; Spray hood, 1/6.
Stacks Image 203






Design

A simple design consisting of a flat hull and two sides with rounded edges and a flat deck. A later design has a curved metal bow deck. The S.T. power plant is easy to fit and run. The rudder is friction fit so you can preset the course to either straight or round.







Stacks Image 235

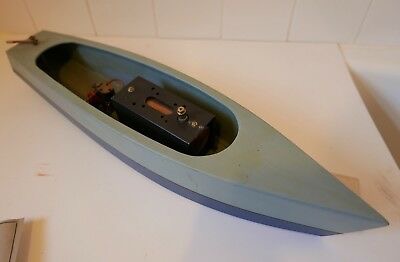

Early design Henley with single piece deck.



Stacks Image 245

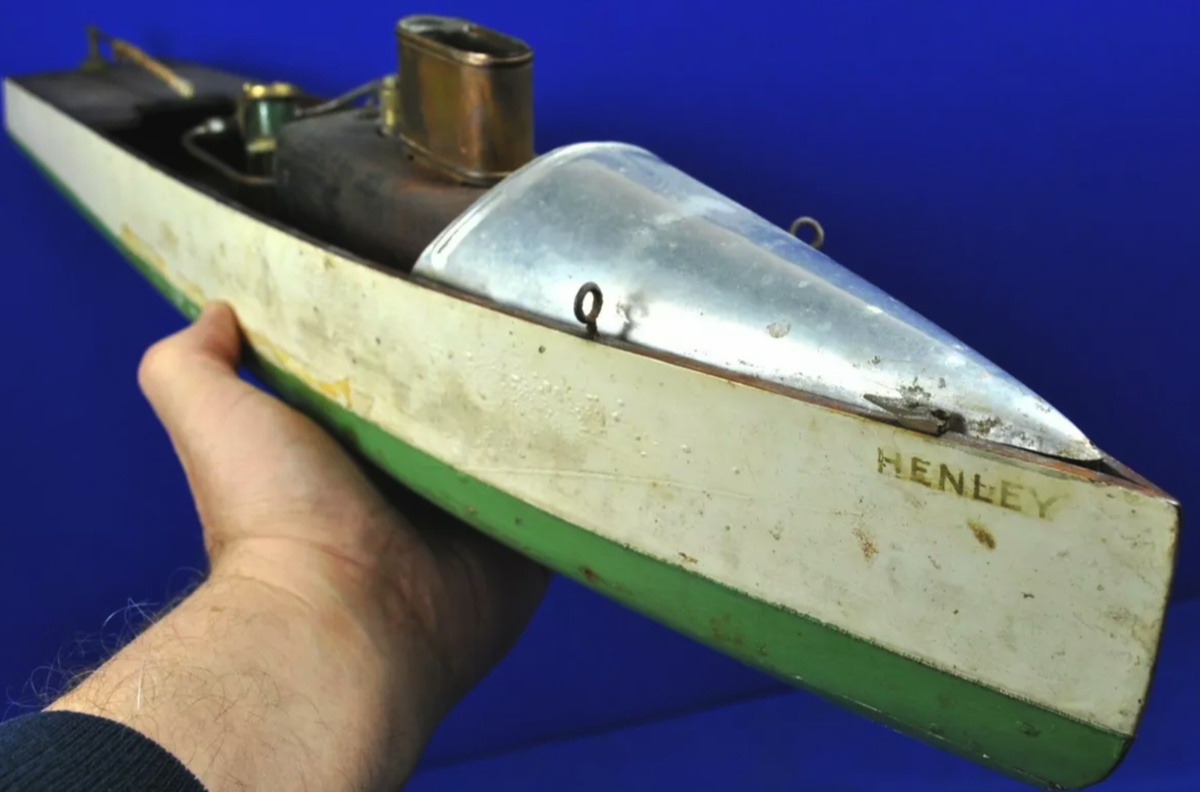

Later design Henley with curved metal bow deck.



Stacks Image 240
A simple, elegant design.






Please drop me a link if you find video of the Henley launch running.







Stacks Image 134

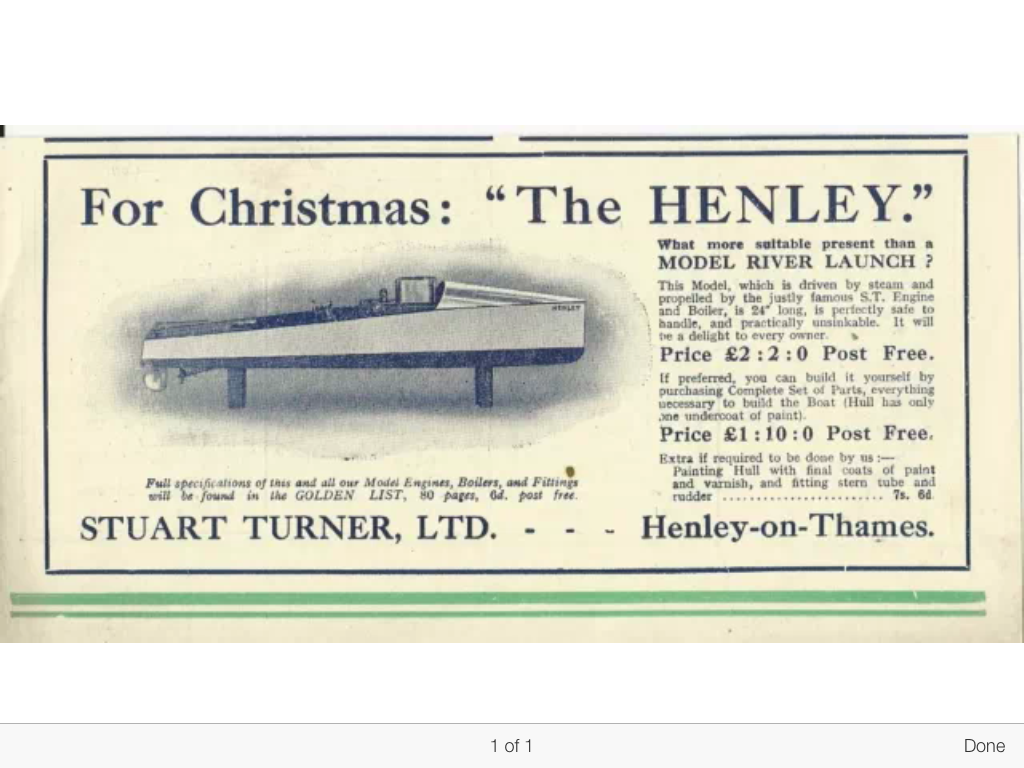

Early Henley design with simple flush bow deck.



Stacks Image 136

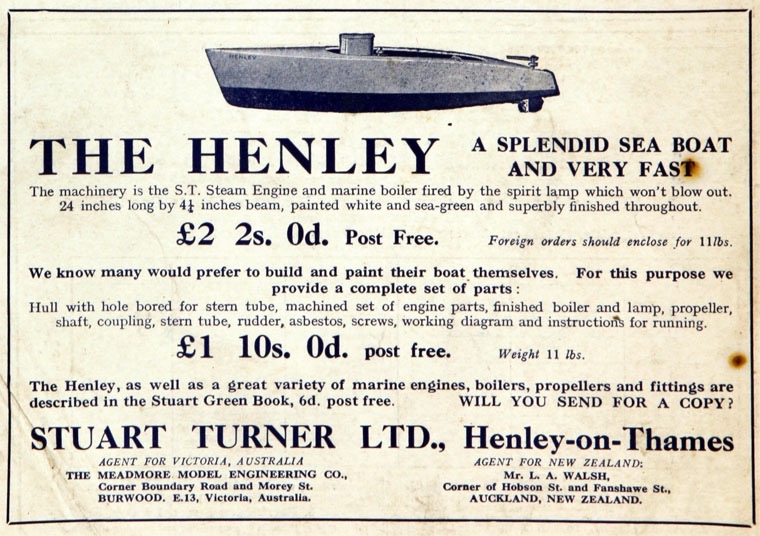

Later advert showing Henley with curved metal bow deck.
